HS code:854449
Test Standard :ISO/IEC11801,TIA-568-C.2 ,YD/T1019-2001

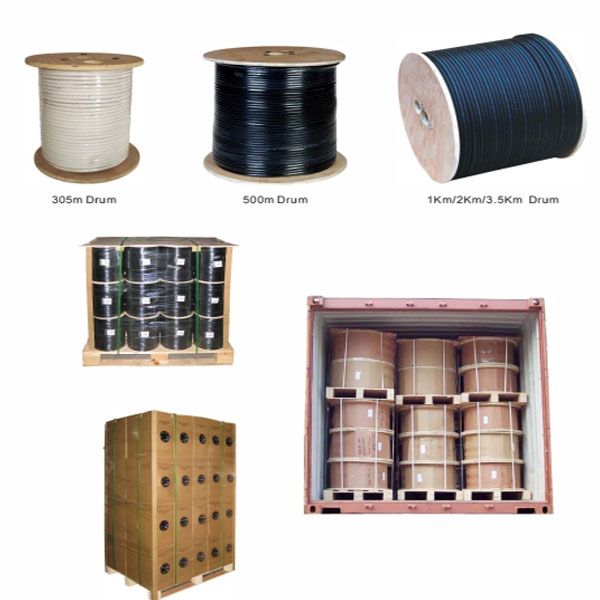

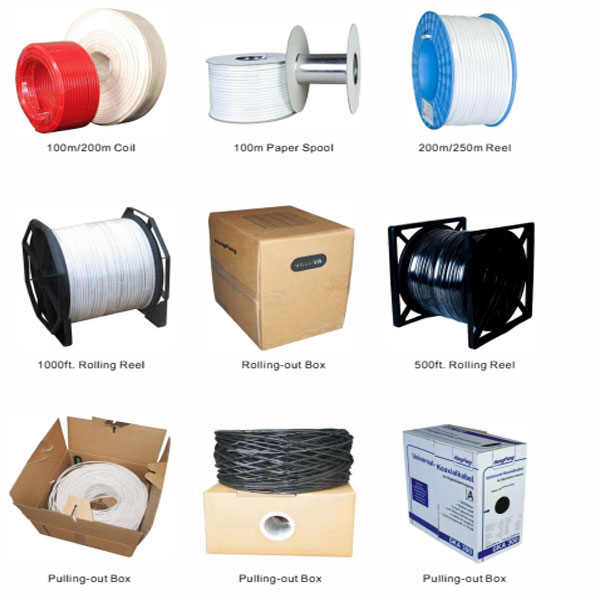

Package :Wooden drum & Carton with customized LOGO
CAT6 cable U/UTP with PE
| Conductor | solid-bare copper | Insulation colors | blue,white/blue | Rip cord | yes |
| Conductor Dia. | 0.57mm±0.005 | orange,white/orange | Jacket | PE | |
| Insulation | HDPE | green,white/green | Jacket color | Black | |
| Insulation Dia. | 1.02mm±0.03 | brown,white/brown | Jacket out Dia. | 6.7±0.4mm | |
| Drain wire | no | Separator | yes | Average Thickness | 0.6±0.05mm |
CAT6 cable U/UTP with PVC/LSZH
| Conductor | solid-bare copper | Insulation colors | blue,white/blue | Rip cord | yes |
| Conductor Dia. | 0.57mm±0.005 | orange,white/orange | Inner jacket | PVC/LSZH | |
| Insulation | HDPE | green,white/green | Inner jacket Color | Multiple | |
| Insulation Dia. | 1.02mm±0.03 | brown,white/brown | Inner jacket Dia. | 6.2±0.4mm | |
| Drain wire | no | Separator | yes | Average Thickness | 0.55±0.05mm |
Electrical Characteristics
| Frequency(MHz) | ATT (≤dB/100m) | NEXT (≥dB) | ELFEXT (≥dB) | RL (≥dB) | PS NEXT (≥dB) |
| 1 | 2.03 | 74.3 | 67.8 | 20 | 64.8 |
| 4 | 3.78 | 65.3 | 55.8 | 23 | 52.8 |
| 8 | 5.32 | 60.8 | 49.7 | 24.5 | 46.7 |
| 10 | 5.95 | 59.3 | 47.8 | 25 | 44.8 |
| 16 | 7.55 | 56.2 | 43.7 | 25 | 40.7 |
| 20 | 8.47 | 54.8 | 41.8 | 25 | 38.8 |
| 25 | 9.51 | 53.3 | 39.8 | 24.3 | 36.8 |
| 31.25 | 10.67 | 51.9 | 37.9 | 23.6 | 34.9 |
| 62.5 | 15.38 | 47.7 | 31.9 | 21.5 | 28.9 |
| 100 | 19.8 | 44.3 | 27.8 | 20.1 | 24.8 |
| 200 | 28.98 | 39.8 | 21.8 | 18 | 18.8 |
| 250 | 32.85 | 38.3 | 19.8 | 17.3 | 16.8 |
| Impedance(1-250MHz) | 100±15 Ohm | DC Conductor Resistance (Ω/100m) max | 9.5 | ||
| Delay Shew ns/100m (1-250MHz) | ≤45 | DC Resistance Unbalance(%) max | 5.0 | ||
| Capacitance(nF/100m) max | 5.6 | NVP | 69% | ||
