Fire alarm cable application:Generally used for connecting alarm equipment such as sensors,control panels and other low voltage circuits;Wiring of fire alarms,Smoke detectors,Voice communications,Burglar Alarms

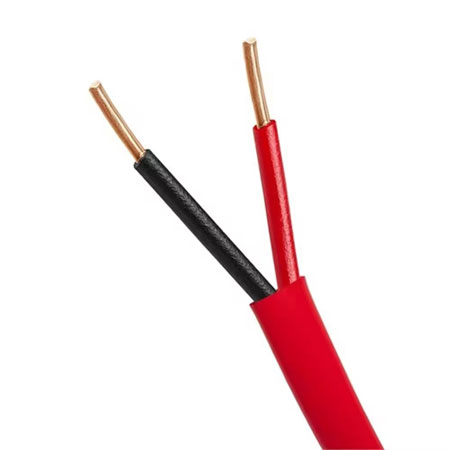

Unshielded fire alarm cable
| Structure | Material |
| Conductor | BC/ Tinned BC Tinned CCA/ CCA |
| Insulation | PVC |
| Jacket | PVC/LSZH |
| Item | Diameter(mm) for different qty cores | |||||
| 2C | 4C | 6C | 8C | 10C | 12C | |
| Conductor | 7/0.254mm(22AWG) 7/0.2mm | |||||
| Insulation(out/inner) | 1.2 /1.0mm | 1.2 /1.0mm | 1.2 /1.0mm | 1.2 /1.0mm | 1.2 /1.0mm | 1.2 /1.0mm |
| Jacket(out/inner) | 3.6/3.2mm | 4.2/3.8mm | 5.1/4.2mm | 5.5/4.6mm | 5.9/5.0mm | 6.5/5.6mm |

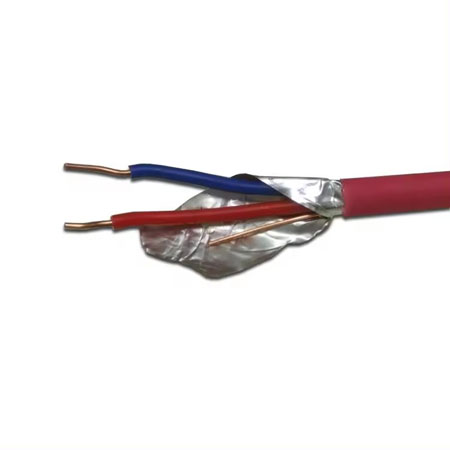

Shielded fire alarm cable
| Structure | Material |
| Conductor | BC/ Tinned BC Tinned CCA/ CCA |
| Insulation | PVC |
| 1st shield | PET mylar |
| Drain wire | BC/TC/TCCA/CCA |
| 2nd shield | aluminum mylar tape |
| Jacket | PVC/LSZH |
| Item | Diameter(mm) for different qty cores | |||
| 2C | 4C | 6C | 8C | |
| Conductor | 7/0.254mm(22AWG) | |||
| Insulation | 1.2mm | 1.2mm | 1.2mm | 1.2mm |
| 1st shield | / | / | / | / |
| Drain wire | 7/0.254mm | |||
| 2nd shield | / | / | / | / |
| Jacket | 4.0mm | 4.6mm | 5.5mm | 6.2mm |

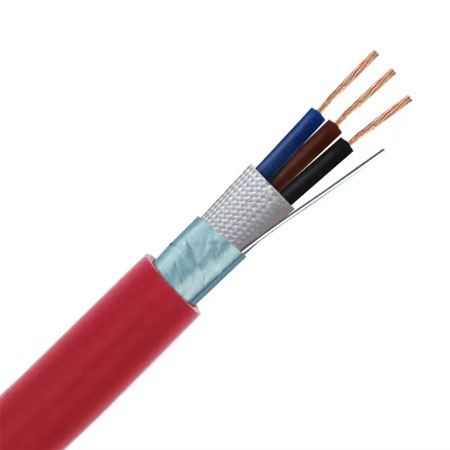

Fire resistant fire alarm cable
Fire resistant cable assures reliable circuit integrity to keep emergency evacuation systems operational even whilst the cable is burning.
| Structure | Material |
| Conductor | BC/ Tinned BC Tinned CCA/ CCA |
| Insulation | fire resistant silcon rubber |
| 1st shield | PET mylar |
| Drain wire | 0.8mm tin copper wire |
| 2nd shield | aluminum mylar tape |
| Jacket | flame retardant PVC/LSZH |
| Operating Voltage | 300V/500V |
| Test Voltage | 2000V |
| Mode | Conductor Dia(mm) | Insulation Dia(mm) | Earth wire Dia(mm) | Jacket Dia(mm) |
| 2×1.0mm2 | 1/1.12mm | 2.6mm | 1/0.8mm | 5.8mm |
| 2×1.5mm2 | 1/1.37mm | 2.8mm | 1/0.8mm | 6.65mm |
| 2×2.5mm2 | 1/1.75mm | 3.4mm | 1/0.8mm | 7.8mm |
| 3×1.0mm2 | 1/1.12mm | 2.6mm | 1/0.8mm | 6.0mm |
| 3×1.5mm2 | 1/1.37mm | 2.8mm | 1/0.8mm | 6.75mm |
| 3×2.5mm2 | 1/1.75mm | 3.4mm | 1/0.8mm | 8.25mm |
| 4×1.0mm2 | 1/1.12mm | 2.6mm | 1/0.8mm | 6.6mm |
| 4×1.5mm2 | 1/1.37mm | 2.8mm | 1/0.8mm | 7.6mm |
| 4×2.5mm2 | 1/1.75mm | 3.4mm | 1/0.8mm | 9.1mm |
